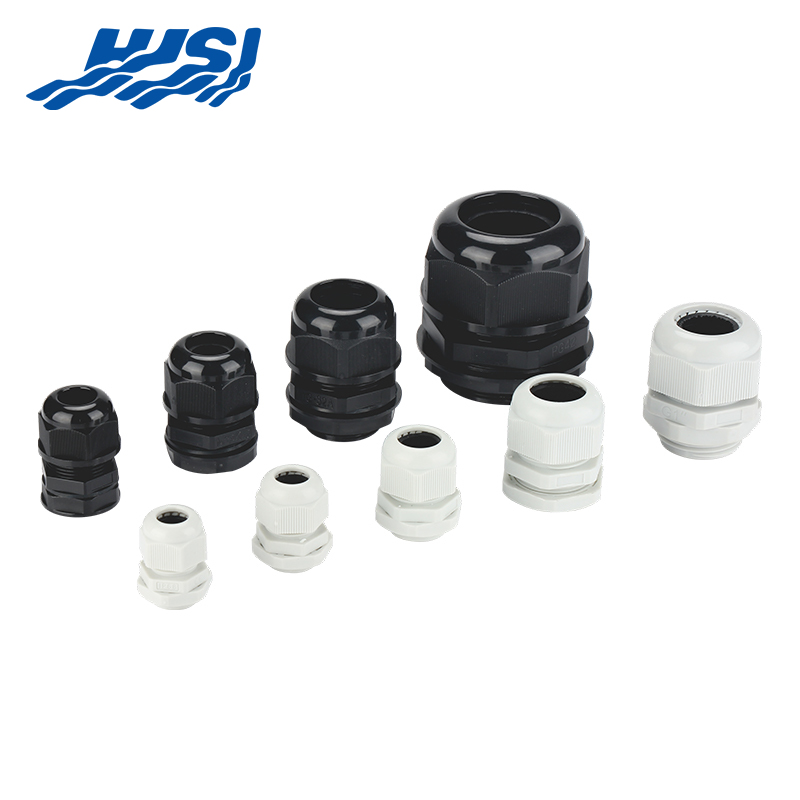

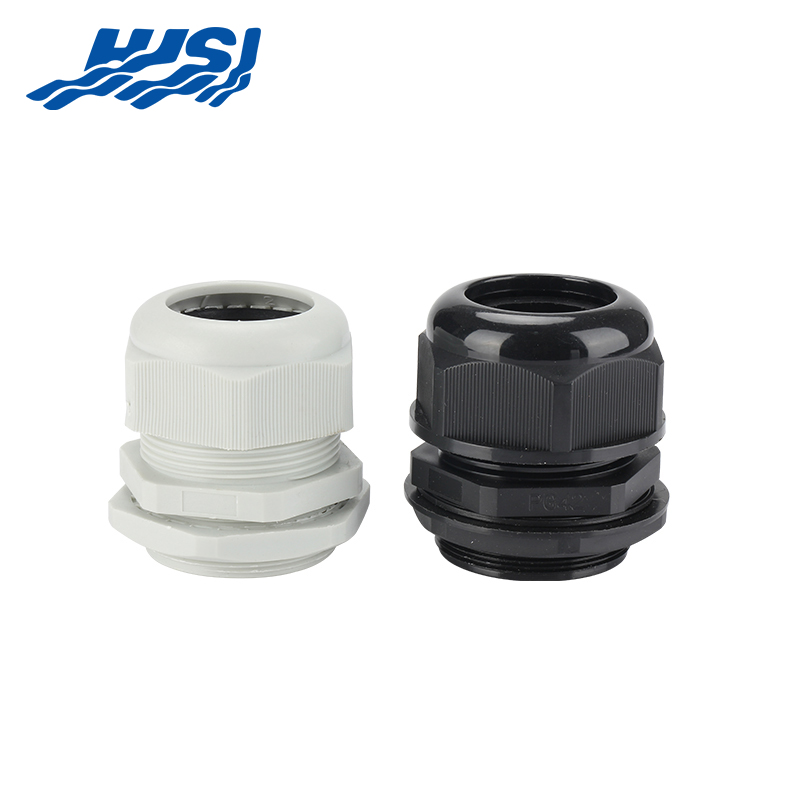

MG Type Plastic Cable Gland IP68

Outline

Material: Nylon PA (UL File NO: E240925).

Seal: Nitrile rubber (NBR) weather-resistant rubber (EPDM).

Protection grade: IP68 (tighten parts and use o-seal ring).

Ambient temperature: static 40°C to 100°C, short-term to 120°C;   Dynamic 20°Cto 80°C, short-term to 100°C.

Body and Nut: PA6, Zero Halogen; Flammbity: V2,(VO optional.

Sealing and Washer: TPE.

Color: Black (RAL 9005), Light Grey (RAL 7035), Grey (RAL 7005); other colors available upon request.

IP Rating IP68 (with thread gasket) to EN 60529.

Temperature Range: -40°C to +100°C.

Entry Thread: Metric (standard and long length) to EN 60423; PG.

Strain Rellef: Acc .to EN 50262.

Accessory: Gland comes with Locknut, Insert Sealing, and Gasket.

Features: Wide cable range; Resistant to salt water, weak acid, alcohol, oil, grease, and common solvency.

Key Selling Points
1. High Protection Rating
The MG Type Plastic Cable Gland IP68 boasts an impressive IP68 rating, making it exceptionally reliable in harsh environments. This level of protection means that it can withstand water submersion and dust exposure, ensuring long-lasting performance.

2. Temperature Range
With a temperature range of -40℃ to +100℃, this cable gland is suitable for diverse applications, from extreme cold to high-temperature settings. This versatility is crucial for industries that operate in fluctuating thermal conditions.

3. Versatile Entry Threads
The entry threads of the MG Type Plastic Cable Gland IP68 are available in both standard and long lengths, following metric and PG standards. This flexibility allows for easy installation in various setups, catering to a wide range of cable sizes and types.

4. Chemical Resistance
Another significant selling point is its resistance to a variety of chemicals, including salt water, weak acids, alcohol, oil, grease, and common solvents. This resistance is crucial for applications in marine, chemical processing, and food industries, where exposure to harsh substances is common.

5. Customization Options
The MG Type Plastic Cable Gland IP68 is available in multiple colors, including black (RAL 9005), light grey (RAL 7035), and grey (RAL 7005), with other colors available upon request. This customization allows for aesthetic integration into different environments while maintaining functionality.

Applications of MG Type Plastic Cable Gland IP68
1. Industrial Settings
One of the primary applications of the MG Type Plastic Cable Gland IP68 is in industrial settings. Its robust design and high IP rating make it suitable for factories, where exposure to dust and moisture is prevalent. The strain relief feature, compliant with EN 50262, adds to its suitability for heavy-duty use, preventing cable damage due to mechanical stress.

2. Marine Applications
Given its resistance to salt water and its durable sealing properties, the MG Type Plastic Cable Gland IP68 is ideal for marine applications. It can be used in boats, ships, and offshore platforms, ensuring reliable operation even in harsh marine environments.

3. Food and Beverage Industry
The chemical resistance of the MG Type Plastic Cable Gland IP68 makes it suitable for the food and beverage industry. It can safely be used in processing plants where exposure to cleaning agents and moisture is common, ensuring compliance with health and safety standards.

4. Renewable Energy
In renewable energy applications, such as solar and wind, the MG Type Plastic Cable Gland IP68 ensures secure and reliable connections in outdoor environments. Its wide temperature range and protection against environmental factors make it a preferred choice for energy projects.

5. Telecommunications
The telecommunications industry also benefits from the MG Type Plastic Cable Gland IP68. Its ability to protect cables from moisture and dust enhances the reliability of communication networks, particularly in outdoor installations.

Conclusion
The MG Type Plastic Cable Gland IP68 stands out as a versatile and robust solution for various applications. Its numerous advantages, including high protection ratings, chemical resistance, and customizable options, make it a preferred choice in industries ranging from manufacturing to marine and telecommunications. With its reliable performance under extreme conditions, the MG Type Plastic Cable Gland IP68 is truly an ultimate choice for somebody seeking quality and durability in cable management solutions.
