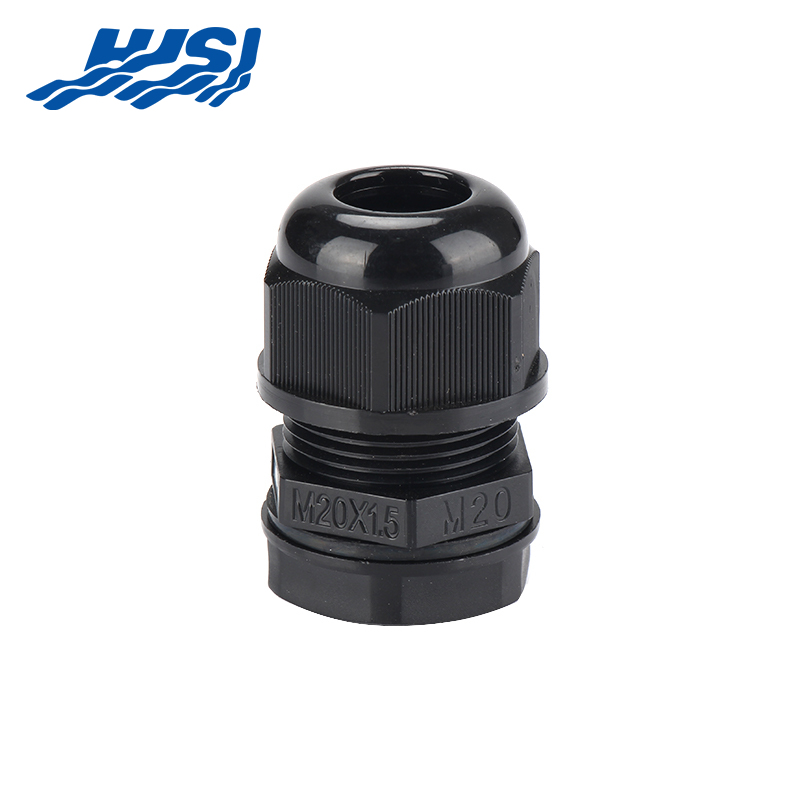

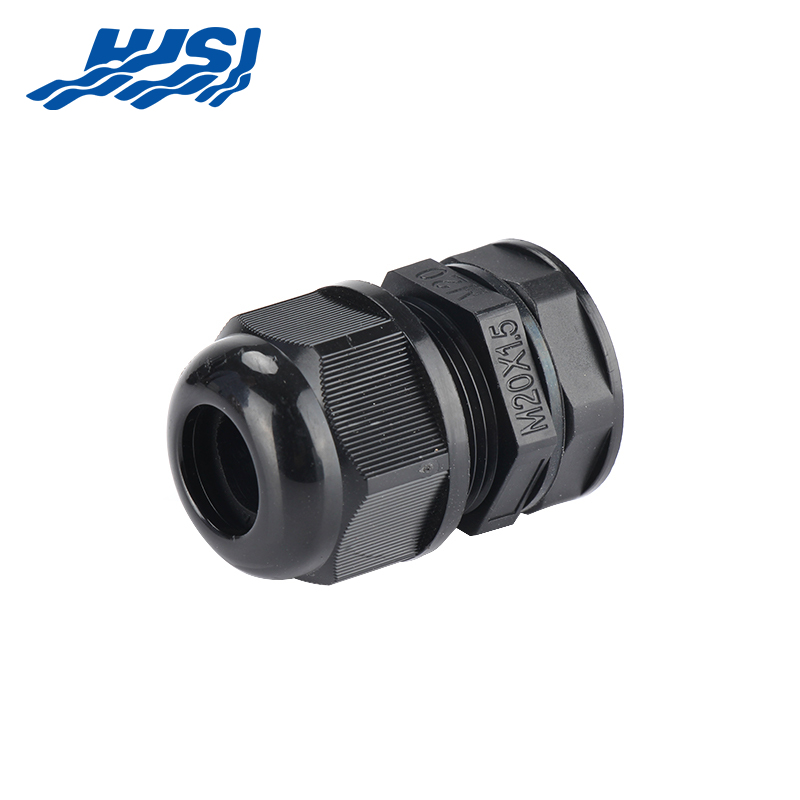

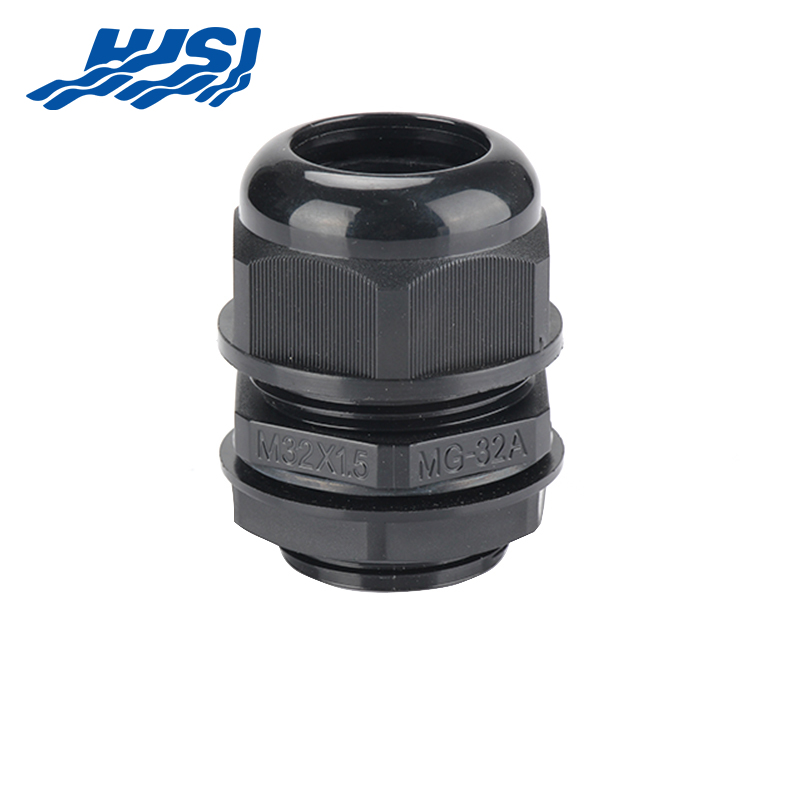

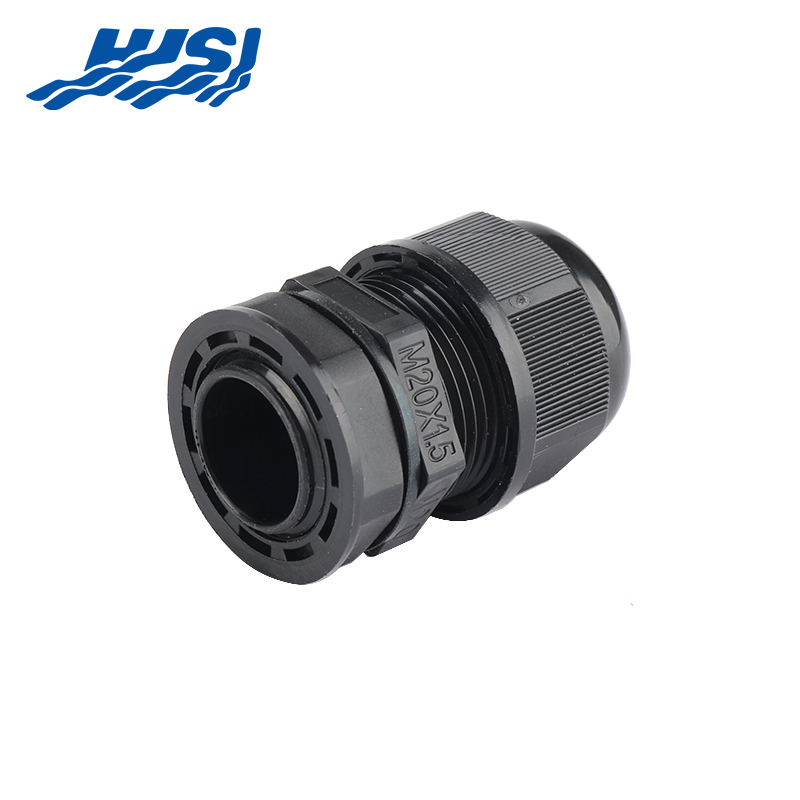

Waterproof Connector for Plastic Extension Cable

Outline

Material: Nylon PA (UL File NO: E240925).

Seal: Nitrile rubber (NBR)

Protection grade: IP68 (tighten parts and use o-seal ring).

Ambient temperature: static 40°C to 100°C, short-term to 120°C;   Dynamic 20°Cto 80°C, short-term to 100°C.

Body and Nut: PA6, Zero Halogen; Flammabity: V2,(VO optional).

Sealing and Washer: NBR.

Color: Black (RAL 9005), Light Grey (RAL 7035), Grey (RAL 7005); other colors available upon request.

IP Rating: IP68 (with thread gasket) to EN 60529.

Temperature Range: -40°C to +100"C.

Entry Thread: Metric (standard and long length) to EN 60423; PG.

Strain Rellef: Acc.to EN 50262.

Accessory: Gland comes with Locknut, Insert Sealing, and Gasket.

Features: Wide cable range; Resistant to salt water, weak acid, alcohol, oil, grease, and common solvency.

Advantages of the Waterproof Connector for Plastic Extension Cable
1. Superior Protection (IP68 Rating)

One of the main advantages of the waterproof connector for plastic extension cable is its IP68 rating, which ensures full protection against dust and prolonged immersion in water. The rating is tested according to the EN 60529 standard and is enhanced with the use of a thread gasket.
Body and Nut: Made from PA6 material, which is zero halogen and flame retardant (V2, VO optional), the connector ensures both safety and durability in demanding conditions.
2. Wide Temperature Range

The waterproof connector for plastic extension cable is designed to withstand extreme temperatures, functioning efficiently between -40°C and +100°C. This makes it suitable for a wide array of environments, from cold outdoor conditions to industrial settings with elevated heat levels.
The sealing and washer are made of NBR, a material known for its excellent resistance to oil, water, and various chemicals, further enhancing the product's adaptability.
3. Chemical and Environmental Resistance

Another significant advantage of the waterproof connector for plastic extension cables is its resistance to environmental elements. The connector can withstand exposure to salt water, weak acids, alcohol, oil, grease, and common solvents, ensuring long-lasting performance in harsh environments.
Key Selling Points of the Waterproof Connector for Plastic Extension Cable
4. Flame Retardant Body and Nut

The waterproof connector for plastic extension cable features a body and nut made from PA6, a material that is not only halogen-free but also flame retardant, meeting V2 standards with an optional VO rating for higher safety requirements. This makes it an ideal choice for sensitive applications where fire resistance is a priority.
Available in various colors including black (RAL 9005), light grey (RAL 7035), and grey (RAL 7005), with customization options for other colors upon request, the connector is aesthetically adaptable to different project needs.
5. Versatile Entry Threads

The waterproof connector for plastic extension cable offers flexible installation with entry threads available in metric sizes (both standard and long lengths) to comply with EN 60423, as well as PG threads. This ensures compatibility with a wide range of cable systems, making the connector suitable for diverse projects.
The accessory package includes a locknut, insert sealing, and gasket, further simplifying installation and providing a secure fit.
6. Reliable Strain Relief

According to EN 50262 standards, the waterproof connector for plastic extension cable provides robust strain relief, reducing the risk of cable damage or connection failure. This is essential in preventing wear and tear during use, extending the lifespan of the electrical system.

Applications of the Waterproof Connector for Plastic Extension Cable
1. Outdoor Electrical Installations

The waterproof connector for plastic extension cable is particularly well-suited for outdoor installations, where exposure to moisture and fluctuating temperatures is a concern. It is commonly used in applications such as garden lighting, security systems, and outdoor power distribution.
2. Industrial Environments

In industrial settings, the waterproof connector for plastic extension cables finds widespread use due to its resistance to chemicals and oils. It is ideal for factory automation, machinery, and control systems that require a robust and long-lasting electrical connection.
The product’s ability to resist salt water and weak acids makes it suitable for industries such as marine and chemical processing.
3. Renewable Energy Systems

With the growing demand for renewable energy solutions, the waterproof connector for plastic extension cable plays a key role in solar and wind energy installations. The connector's IP68 rating ensures that electrical connections are secure and protected from the elements, contributing to the efficient operation of these systems.

Conclusion
The waterproof connector for plastic extension cable is a highly versatile and durable solution for a wide range of applications, providing excellent protection against water, chemicals, and extreme temperatures. With its IP68 rating, flame-retardant materials, and adaptable entry threads, it stands out as a reliable choice for outdoor electrical systems, industrial environments, and renewable energy projects.
