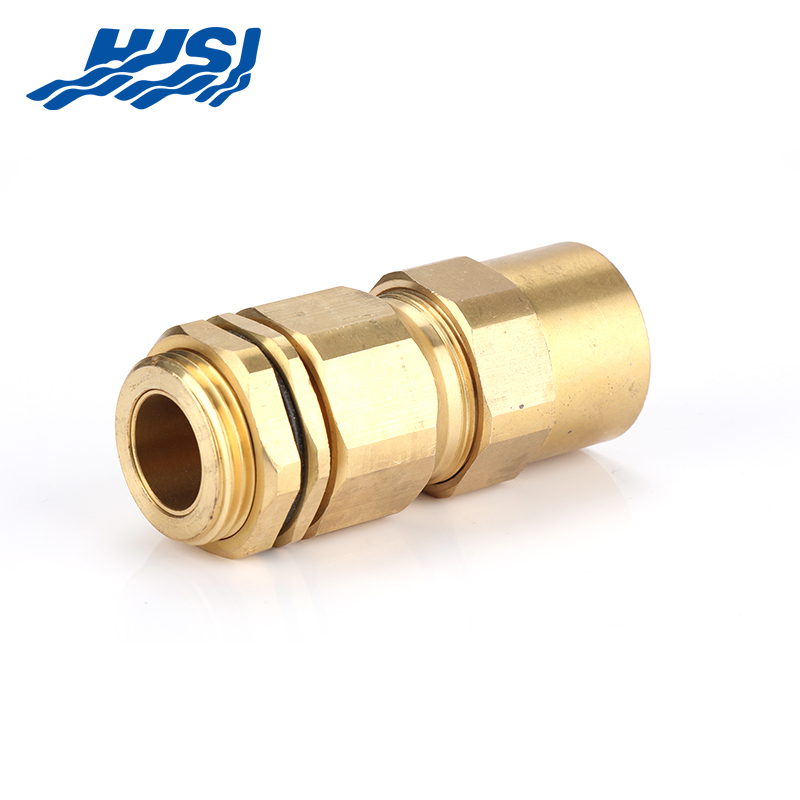

The Explosive Atmosphere Cable Gland Single Seal is engineered to ensure safety and reliability in environments where explosive gases or dust may be present. Designed for all types of armoured cables, this product offers a robust solution for various industrial applications. With a focus on high-quality, durable materials, the cable gland guarantees longevity and performance under challenging conditions.
| Part No. | Size | Cable range | Thread Length (mm) |
Length(mm) | Armour Size (mm) |
Brad Sze (mm) |
A/F Hexagon cap (mm) |
|
| Inner(mm) | Outer (mm) | |||||||
| HJSI-XK-M20 | M20×1.5 | 6-10 | 9-15 | 16 | 30 | 0.9/1.25 | 0.05/0.8 | 24 |
| HJSI-XK-M25 | M25×1.5 | 10-14 | 12-21 | 16 | 31 | 1.25/1.6 | 0.05/0.8 | 30 |
| HJSI-XK-M32 | M32×1.5 | 13-19 | 17-26 | 18 | 34 | 1.6/2.0 | 0.05/1.2 | 38 |
| HJSI-XK-M40 | M40×1.5 | 18-25 | 22-33 | 20 | 40 | 1.6/2.0 | 0.05/1.2 | 46 |
| HJSI-XK-M50 | M50×1.5 | 25-31 | 28-41 | 22 | 43 | 1.8/2.5 | 0.05/1.2 | 55 |
| HJSI-XK-M63 | M63 | 31-37 | 36-52 | 22 | 55 | 1.8/2.5 | 0.05/1.2 | 68 |
| HJSI-XK-M75 | M75 | 42-55 | 46-65 | 24 | 60 | 1.8/2.5 | 0.05/1.2 | 85 |
| HJSI-XK-NPT1/2 | NPT1/2 | 6-10 | 9-15 | 16 | 30 | 0.9/1.25 | 0.05/0.8 | 24 |
| HJSI-XK-NPY3/4 | NPT3/4 | 10-14 | 12-21 | 16 | 31 | 1.25/1.6 | 0.05/0.8 | 30 |
| HJSI-XK-NPT1 | NPT1 | 13-19 | 17-26 | 18 | 34 | 1.6/2.0 | 0.05/1.2 | 38 |
| HJSI-XK-NPT11/4 | NPT11/4 | 18-25 | 22-33 | 20 | 40 | 1.6/2.0 | 0.05/1.2 | 46 |
| HJSI-XK-NPT11/2 | NPT11/2 | 25-31 | 28-41 | 22 | 43 | 1.8/2.5 | 0.05/1.2 | 55 |
| HJSI-XK-NPT2 | NPT2 | 31-37 | 36-52 | 22 | 55 | 1.8/2.5 | 0.05/1.2 | 68 |
| HJSI-XK-NPT21/2 | NPT21/2 | 42-55 | 46-65 | 24 | 60 | 1.8/2.5 | 0.05/1.2 | 85 |
| HJSI-XK-G1/2 | G1/2 | 6-10 | 9-15 | 16 | 30 | 0.9/1.25 | 0.05/0.8 | 24 |
| HJSI-XK-G3/4 | G3/4 | 10-14 | 12-21 | 16 | 31 | 1.25/1.6 | 0.05/0.8 | 30 |
| HJSI-XK-G1 | G1 | 13-19 | 17-26 | 18 | 34 | 1.6/2.0 | 0.05/1.2 | 38 |
| HJSI-XK-G11/4 | G11/4 | 18-25 | 22-33 | 20 | 40 | 1.6/2.0 | 0.05/1.2 | 46 |
| HJSI-XK-G11/2 | G11/2 | 25-31 | 28-41 | 22 | 43 | 1.8/2.5 | 0.05/1.2 | 55 |
| HJSI-XK-G2 | G2 | 31-37 | 36-52 | 22 | 55 | 1.8/2.5 | 0.05/1.2 | 68 |
| HJSI-XK-G21/2 | G21/2 | 42-55 | 46-65 | 24 | 60 | 1.8/2.5 | 0.05/1.2 | 85 |
Outline
High quality durable materials.
Permanently crimped, low impedance earth termination.
Secure against self-loosening.
Metal to metal armor clamping,
Direct & remote installation.
Superior EMC performance.
Internationally marked, ATEX.
Excellent material
Design Specification: BS 6121, IEC 62444, EN 50262.
Ingress Protection: IP66 (EN 60529).
Applicable Cable Specification: All types of armored cables.
Thread Type: Metric, NPT, G.
Gland Material: Nickel Plated Brass(Standard),Brass(Plain) Stainless Steel (304)
or available as per demand.
Sealing; Silicone (yellow).
Gasket (washer): Thermoplastic Rubber.
Working Temperature: -40°C to +100^C.
Armour Clamping: Reversible Armour Cone & AnyWay Universal Clamping Ring.
Technique Sealing: Double Sealing.
Sealing Area(s: Cable Inner Sheath & Outer Cable Sheath.
Compliance Standards: EN 60079-0,1,7,31.
Code of Protection: I1 2GD, Exd II C Gb, Exe IIC Gb, Ex tD A21.
Key Advantages
1. Durability and Material Quality
Constructed from premium materials such as nickel-plated brass and stainless steel (304), the Explosive Atmosphere Cable Gland Single Seal ensures resistance to corrosion and wear. This durability is crucial for maintaining integrity in hazardous locations, where exposure to aggressive elements is a concern.
2. Secure Installation
The gland features a permanently crimped, low-impedance earth termination, providing reliable grounding that enhances safety. Its design prevents self-loosening, ensuring that connections remain secure over time. Metal-to-metal armour clamping offers additional reliability, ensuring the cable is firmly anchored within the gland.
3. Versatile Installation Options
Designed for direct and remote installation, the Explosive Atmosphere Cable Gland Single Seal caters to various installation scenarios. This flexibility allows for easier integration into existing systems, making it an ideal choice for upgrades or new installations.
4. Superior EMC Performance
The gland's construction ensures superior electromagnetic compatibility (EMC) performance, which is essential in environments with heavy machinery or sensitive electronics. This characteristic interference enhances the operational reliability of connected equipment.
5. High Ingress Protection
With an ingress protection rating of IP66 (EN 60529), the Explosive Atmosphere Cable Gland Single Seal provides excellent sealing against dust and water. This rating guarantees that the internal components remain protected, even in hard conditions.
Selling Points
1. International Compliance
The product meets several international standards, including ATEX, BS 6121, IEC 62444, and EN 50262. Such certifications assure users of the gland's reliability and suitability for explosive atmospheres, enhancing confidence in safety measures.
2. Temperature Resilience
The working temperature range of -40℃ to +100℃ makes this gland adaptable to various climates and operational settings. This resilience is vital for maintaining functionality in extreme environments.
3. Effective Sealing
Featuring double sealing at the cable inner and outer sheaths, the Explosive Atmosphere Cable Gland Single Seal prevents the ingress of hazardous materials. This sealing mechanism is enhanced by a thermoplastic rubber gasket (washer) and silicone sealing (yellow), further bolstering safety.
4. Customizability
The gland can be tailored to specific requirements, allowing users to select the appropriate sealing area and gland material. This customization ensures that it meets the unique needs of various applications.
5. Reversible Armour Cone and Universal Clamping Ring
The innovative reversible armour cone and AnyWay universal clamping ring enhance installation flexibility. This feature simplifies the connection process, allowing for quick and efficient setups.
Applications
The Explosive Atmosphere Cable Gland Single Seal is widely applicable across various industries, including:
1. Oil and Gas
Ideal for use in refineries and drilling sites, where explosive gases are present, ensuring safe power distribution.
2. Chemical Processing
The gland's robust design and high ingress protection make it suitable for environments where corrosive substances are handled.
3. Mining
In underground mining operations, the gland safeguards electrical connections from dust and moisture, enhancing operational safety.
4. Pharmaceuticals
The gland's EMC performance is crucial in maintaining the integrity of sensitive equipment used in pharmaceutical manufacturing.
In conclusion, the Explosive Atmosphere Cable Gland Single Seal stands out as a reliable choice for applications requiring stringent safety measures. Its combination of high-quality materials, secure installation features, and compliance with international standards makes it an ultimate solution for explosive atmospheres, ensuring operational safety and longevity.
